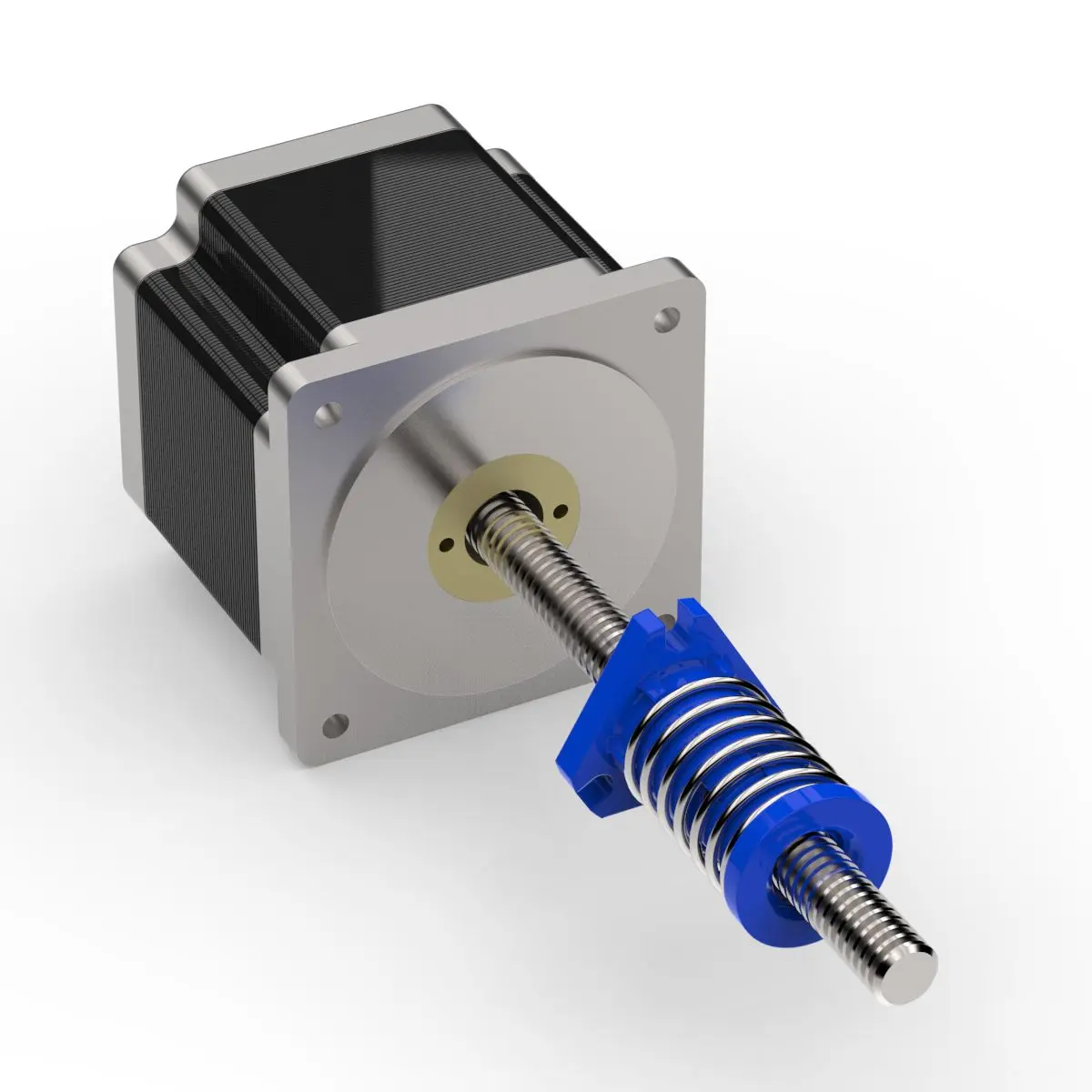

- External Stepper Motor Linear Actuator
| Actuator Style | External |
|---|---|
| Bearing Load Limit (N) | 2000 |
| Bearing Support | 0 |
| Diameter (in) | 0.625 |
| Diameter (mm) | 15.875 |
| Diameter Code | 62 |
| Encoder | No Encoder |
| Inductance/Phase (mH) | 8.8 |
| Lead (in) | 0.750 |
| Lead (mm) | 19.050 |
| Lead Code | 750 |
| Lead Screw Lead Accuracy +/- (in/in) | 0.1/300 |
| Lead Time | 2 Weeks |
| Motor Size (NEMA) | 34 |
| Motor Stack | Single Stack |
| Motor Voltage (VDC) | 5 |
| Motor Weight (g) | 2300 |
| Nut Type | AFA |
| Power Consumption (W) | 31.2 |
| Q | AWG26# |
| Rated Current (A) | 3.12 |
| Screw Drive Type | Lead Screw |
| Screw Length (in) | 10 |
| Screw Length (mm) | 254 |
| Step Angle (°) | 1.8 |
| Temperature Rise (°C) | 75 |
| Temperature Rise (°F) | 167 |
| Travel Per Step (in) | 0.635 |
| Travel Per Step (mm) | 0.025 |
| Wiring | Bipolar |
| Wiring Leads | 4 |
