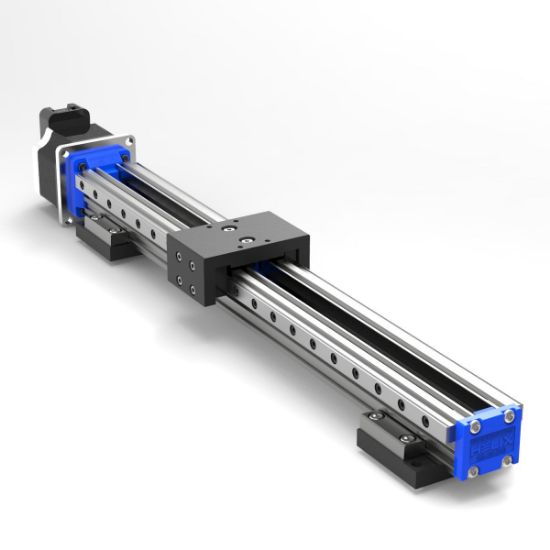

Name: Micro Precision Integrated Motor Linear Actuator (IPA)
SKU: 255103
Price: 924.17 USD
Availability: InStock

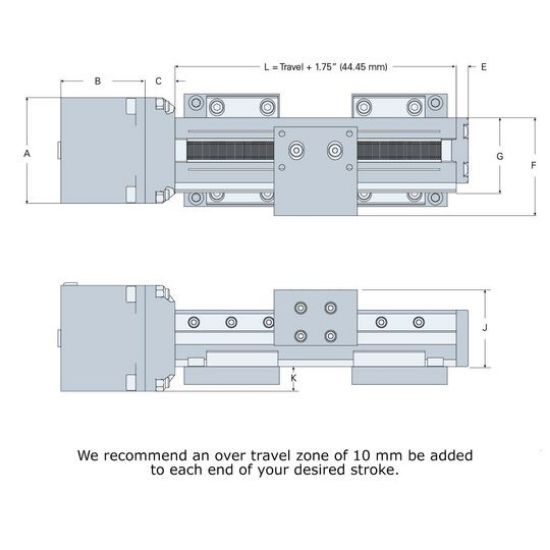

A (in)	1.660
A (mm)	42.200
Actuator Length (in)	38.390
Actuator Length (mm)	975
B (in)	0.500
B (mm)	0
C (in)	1.330
C (mm)	33.800
Carriage Style	U-shaped
Diameter Code	37
E (in)	0.250
E (mm)	6.400
Encoder	E1000 Encoder
F (in)	2.060
F (mm)	52.300
Fx - Dynamic Normal Load (lbs)	647.4
Fx - Static Normal Load (lbs)	2513.4
Fy - Axial Dynamic Load Capacity (lbs)	75
Fy - Axial Static Load Capacity (lbs)	350
Fz - Dynamic Normal Load (lbs)	647.4
Fz - Static Normal Load (lbs)	2513.4
G (in)	1.590
G (mm)	40.400
Inductance/Phase (mH)	3.5
J (in)	2.220
J (mm)	56.400
K (in)	0.240
K (mm)	6.200
L (in)	1.610
L (mm)	40.600
Lead (in)	1.500
Lead (mm)	38.100
Lead Code	M38
Lead Screw Accuracy +/- (in/in)	0.0003
Lead Time	2 Weeks
Linear Guide Supports	Dual Rails
M (in)	0.520
M (mm)	13.100
M2 (in)	0.140
M2 (mm)	3.600
Motor Weight (g)	511
Motor Weight (oz)	5.7
Mx - Maximum Moment Load (in/lbs)	478
My - Maximum Moment Load (in/lbs)	772
Mz - Maximum Moment Load (in/lbs)	478
N (in)	0.170
N (mm)	4.200
Number of Runner Blocks	1
Nut Type	Standard
P (in)	1.420
P (mm)	36
Power Consumption (W)	13
Q (in)	0.710
Q (mm)	18
R (in)	1.860
R (mm)	47.400
Rated Current (A)	2
S	M4× 0.7
Screw Diameter (in)	0.375
Screw Diameter (mm)	9.530
Screw Drive Type	Lead Screw
Series	IPA
Step Angle (°)	1.8
T (in)	1.750
T (mm)	44.500
Travel (in)	36.610
Travel (mm)	930
U (in)	1.380
U (mm)	34.900
V (in)	0.440
V (mm)	11.100
W (in)	1.190
W (mm)	30.200

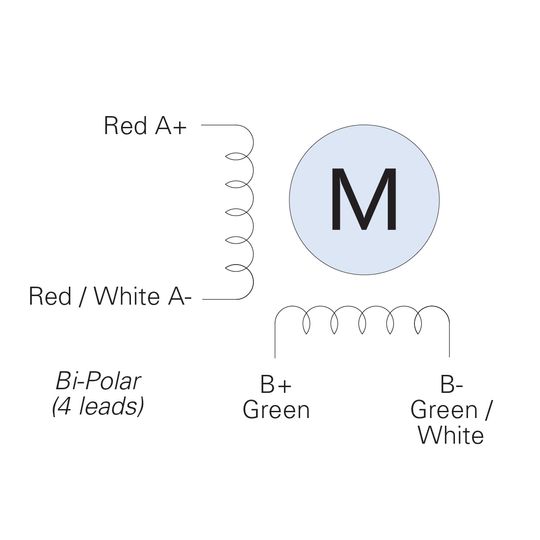

Wiring	Bipolar
Wiring Leads	4
Zero Lash Axial Dynamic Load Capacity (lbs)	8

Micro Precision Integrated Motor Linear Actuator (IPA) IPA-D-M38-S-23-975-S-E1000-A-S
