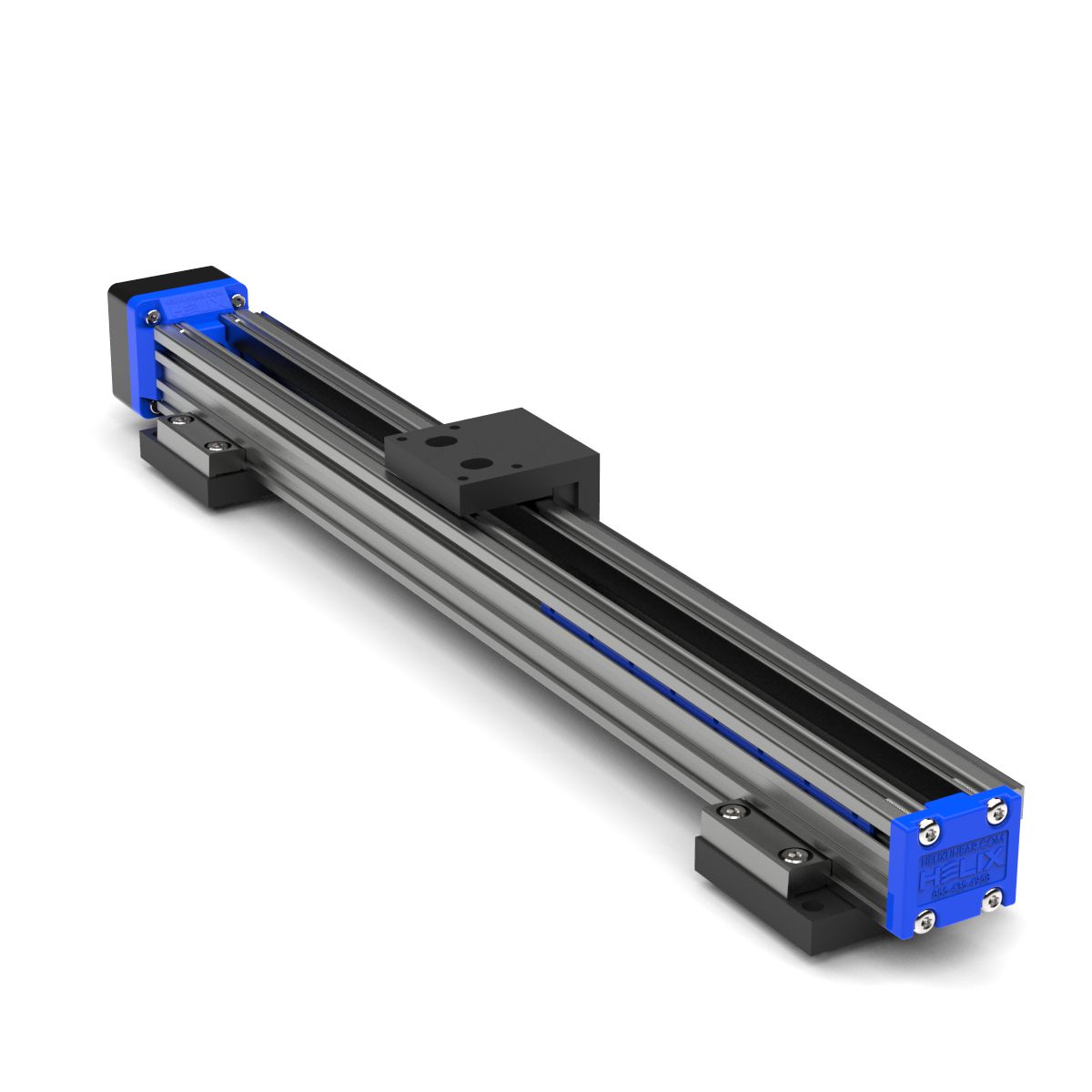

Name: Simple Micro Precision Linear Actuator (SPA)
SKU: 256191
Price: 742.32 USD
Availability: InStock

A (in)	1.67
A (mm)	42.5
Actuator Length (in)	21.46
Actuator Length (mm)	545
B (in)	0.76
B (mm)	19.3
C (in)	1.23
C (mm)	31
Carriage Style	L-shaped
D (in)	0.75
D (mm)	19.1
Diameter Code	37
E (in)	0.25
E (mm)	6.4
End Configuration	Drive Shaft
F (in)	2.06
F (mm)	52.3
Fx - Dynamic Normal Load (lbs)	323.7
Fx - Static Normal Load (lbs)	1256.7
Fy - Axial Dynamic Load Capacity (lbs)	75
Fy - Axial Static Load Capacity (lbs)	350
Fz - Dynamic Normal Load (lbs)	323.7
Fz - Static Normal Load (lbs)	1256.7
G (in)	1.59
G (mm)	40.4
J (in)	1.61
J (mm)	40.6
K (in)	0.52
K (mm)	13.1
Lead (in)	0.472
Lead (mm)	4
Lead Code	472
Lead Screw Accuracy +/- (in/in)	0.0003
Lead Time	2 Weeks
Linear Guide Supports	1 Rail - Left
M (in)	0.14
M (mm)	3.6
Mx - Maximum Moment Load (in/lbs)	239
My - Maximum Moment Load (in/lbs)	386
Mz - Maximum Moment Load (in/lbs)	239
N (in)	0.17
N (mm)	4.2
Number of Runner Blocks	1
Nut Type	Anti-backlash
P (in)	1.42
P (mm)	36
Q (in)	0.71
Q (mm)	18
R (in)	1.86
R (mm)	47.4
S	M4× 0.7
Screw Diameter (in)	0.375
Screw Diameter (mm)	9.53
Screw Drive Type	Lead Screw
Series	SPA
T (in)	1.75
T (mm)	44.5
Travel (in)	19.69
Travel (mm)	500
U (in)	1.38
U (mm)	34.9
V (in)	0.44
V (mm)	11.1
W (in)	1.19
W (mm)	30.2
X1 (in)	0.252
X1 (mm)	6.4
X2 (in)	0.189
X2 (mm)	4.8
X3 (in)	2
X3 (mm)	50.8
X4 (in)	0.217
X4 (mm)	5.5
Y1 (in)	2.374
Y1 (mm)	60.3
Y2 (in)	2
Y2 (mm)	50.8
Y3 (in)	0.374
Y3 (mm)	9.5
Z1 (in)	0.705
Z1 (mm)	17.9
Z2 (in)	1.5
Z2 (mm)	38.1
Zero Lash Axial Dynamic Load Capacity (lbs)	8

Simple Micro Precision Linear Actuator (SPA) SPA-C-472-AB-00-545-S
