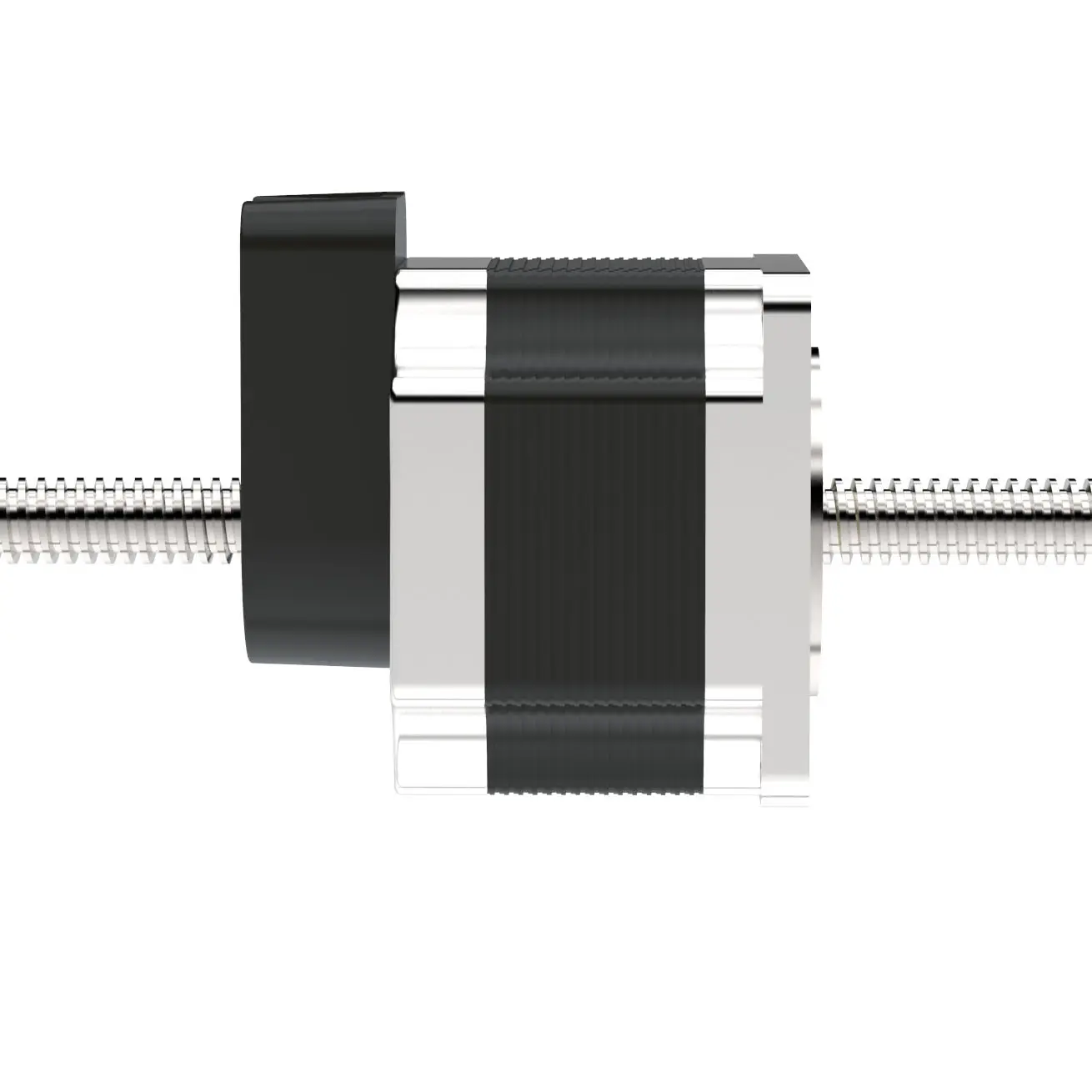

Name: Non-captive Stepper Motor Linear Actuator
SKU: 156746
Price: 455.43 USD
Availability: InStock

Actuator Style	Non-Captive
Bearing Load Limit (N)	975
Diameter (in)	0.375
Diameter (mm)	9.525
Diameter Code	W37
Encoder	500 CPR
End Machining	Standard Imperial End Machining
Inductance/Phase (mH)	3.5
Lead (in)	0.100
Lead (mm)	2.540
Lead Code	100
Lead Screw Lead Accuracy +/- (mm/mm)	0.1/300
Lead Time	2 Weeks
M	5.1 mm
Motor Size (NEMA)	23
Motor Stack	Single Stack
Motor Voltage (VDC)	3.25
Motor Weight (g)	511
Power Consumption (W)	13
Q	AWG26#
Rated Current (A)	2
Screw Drive Type	Lead Screw
Screw Length (in)	6
Screw Length (mm)	152.400
Step Angle (°)	1.8
Temperature Rise (°C)	75
Temperature Rise (°F)	167
Travel Per Step (in)	0.254
Travel Per Step (mm)	0.010
Wiring	Bipolar
Wiring Leads	4

Non-captive Stepper Motor Linear Actuator SMA-23S3.25-N-W37100-6.00-SE-E500-A
