Name: Non-captive Stepper Motor Linear Actuator
SKU: 165888
Price: 651.20 USD
Availability: InStock

Actuator Style	Non-Captive
Diameter (in)	0.625
Diameter (mm)	15.875
Diameter Code	W62
Encoder	Encoder-Ready
End Machining	Metric End Machining
Lead (in)	0.100
Lead (mm)	2.540
Lead Code	100
Lead Screw Lead Accuracy +/- (mm/mm)	0.1/300
Lead Time	2 Weeks

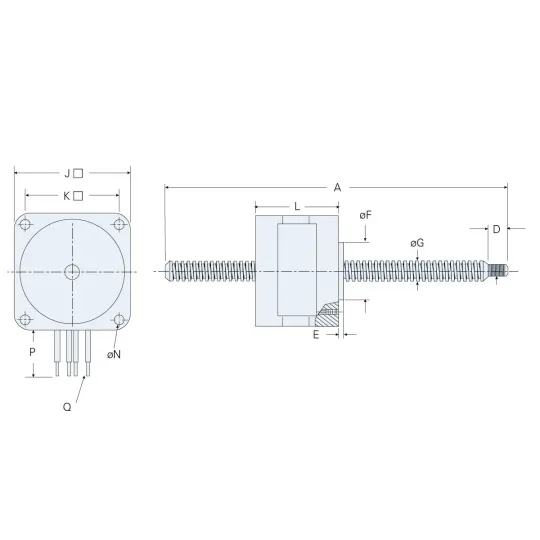

M	5.5 mm
Motor Size (NEMA)	34
Motor Stack	Single Stack
Motor Voltage (VDC)	2.85
Q	AWG26#
Screw Drive Type	Lead Screw
Screw Length (in)	26
Screw Length (mm)	660.400
Step Angle (°)	1.8
Temperature Rise (°C)	75
Temperature Rise (°F)	167
Travel Per Step (in)	0.635
Travel Per Step (mm)	0.025
Wiring	Bipolar
Wiring Leads	4

Non-captive Stepper Motor Linear Actuator SMA-34S2.85-N-W62100-26.00-ME-R-00
