Anti-backlash Hurricane Nut (HAFA), HAFA075500R

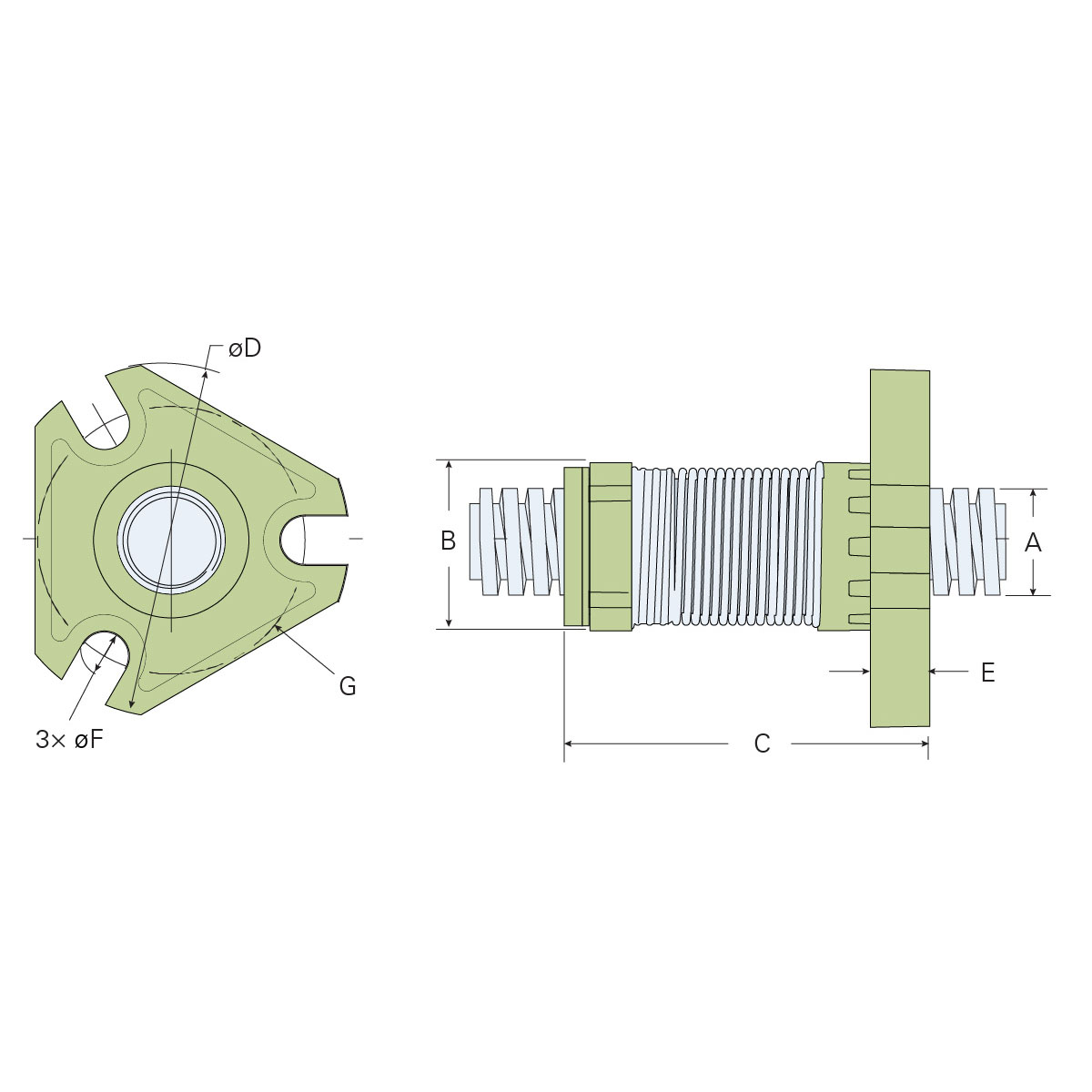

Bolt Circle Diameter G (in)	1.875
Connection Type	Flanged
Diameter Code	75
Dynamic Load Capacity (lbs)	530
Efficiency (%)	72.85188319
Flange Diameter D (in)	2.25
Flange Thickness E (in)	0.313
Imperial or Metric	TRUE
Lead (in)	0.5
Lead Accuracy +/- (in/in)	0.0003
Lead Code	500
Lead Time	2 Weeks
Material	Helital
Mating Screw Part No	075500R
Maximum Axial Lash (in)	FALSE
Nominal Diameter A (in)	0.75
Nut Code	HAFA
Nut Diameter B (in)	1.5
Nut Length C (in)	2.675
Nut Size	5
Nut Type	Axial Anti-Backlash Hurricane Nut with 3-hole flange
Pitch (in)	0.125
Pitch (mm)	3.175
Product Category	Lead Screw Nut
Product Sub Category	Anti-Backlash
Product Sub Category 1	Axial
Slot Width F (in)	0.257
Standard Operating Temperature Range (F°)	32 - 200
Starts	4
Thread Class	2C
Thread Direction	RH
Thread Type	Acme
Threads Per Inch	8
Turns Per Inch of Travel	2
Type 1,2,3	12
Type 4	8
